Nine types of vertical circular three-dimensional garages

Release time：2021-03-01

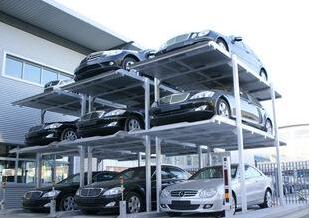

1. Elevating and horizontal moving parking equipment

Elevating and horizontal moving parking equipment is a common type of three-dimensional garage in the current market. It is a three-dimensional garage that uses a vehicle loading board to lift or move vehicles horizontally. Generally, it is a quasi unmanned method, which means that people move cars after leaving the equipment.

2. Vertical circulation parking equipment

Vertical circulation type parking equipment refers to parking equipment in which the transporter performs cyclic motion in a vertical plane, consisting of a metal structural frame, transporter, drive system, control system, safety and detection system.

3. Simple lifting parking equipment

Simple lifting type mechanical parking equipment is a parking device that uses the pitch (swing) of the lifting mechanism or carrier plate to access and retrieve vehicles.

4. Vertical lifting parking equipment

Vertical lifting mechanical parking equipment refers to a parking device that uses a lifting system to lift and move horizontally through a conveyor, and parks cars on both sides of the shaft. It consists of a metal structural framework, lifting system, transporter, rotating device, entrance and exit ancillary equipment, control system, safety and detection system.

5. Flat mobile parking equipment

Flat mobile parking equipment refers to mechanical parking devices that use a handling trolley or crane to move vehicles horizontally on the same floor, or allow the carrier plate to move horizontally to access and park vehicles. It can also be used in conjunction with a handling trolley and an elevator to achieve multi-level flat movement access and parking vehicles.

6. Tunnel stacking parking equipment

Mechanical parking equipment for tunnel stacking can be installed outdoors (usually in a fully enclosed form), indoors, above ground, or underground depending on the site. High storage volume ratio, safe and reliable.

7. Multi layer circular parking equipment

Multi layer circulating parking equipment refers to a parking device that stores vehicles in multiple layers by horizontally circulating the loading plate up and down.

8. Horizontal circulation parking equipment

The horizontal cyclic parking garage adopts a mechanical parking equipment with a horizontal cyclic motion parking space system for storing, retrieving and parking vehicles, mainly composed of steel structure, loading plate, cyclic drive system, control system, safety detection device and other parts.

9. Automobile specific lift

A car specific lift is a lift specifically designed for different planes, which serves the purpose of transportation without direct access. In the construction of three-dimensional parking garages, it is often encountered that due to the limited space, self-propelled ramps cannot be used. In order to transport cars to different levels for vehicle access, vertical lifting car specific elevators are needed. This can replace the sloping ramp for cars entering and exiting the garage, greatly saving space and improving garage utilization. This type of car specific elevator is commonly used for underground or rooftop transportation, as well as for the handling of cars in building self propelled garages.
